CRYSTAL QUEST
Eagle 2000-FG |
Eagle 2000-SS |
Eagle 2000A-FG |
Eagle 2000A-SS |
|
|
|
|
750,000-1 Mil Gallons** | 750,000-1 Mil Gallons** | 750,000-1 Mil Gallons** | 750,000-1 Mil Gallons** |
Order Replacement Filters |
See All Our Whole House Water Filters
See what contaminants were
in tap
water before filtration
See how much contaminants
were removed after being filtered with Crystal Quest
These full size systems are far more powerful than the
Multi-Stage filter used in the tests above

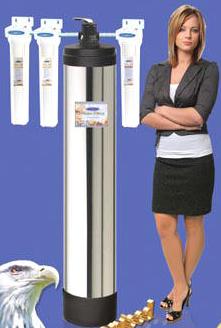

CRYSTAL QUEST® Eagle® Full-Size Whole House Water Filter provides you with pristine great tasting water through every faucet in your home. They represents the most robust whole house water system we have ever seen. It removes hundreds of contaminants from 750,000 and 1000,000 gallons** of water. This is incredible. These systems are work horses. Great for home, apartment or office use.

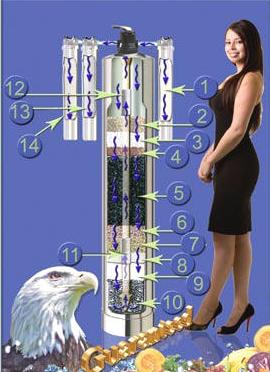

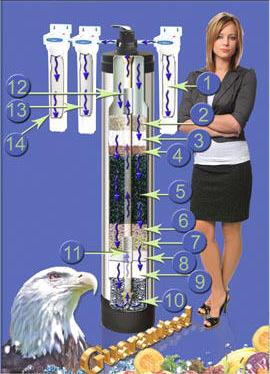

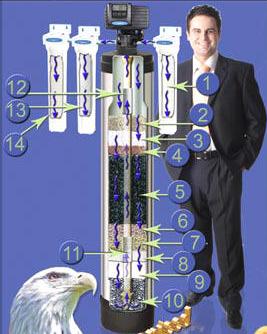

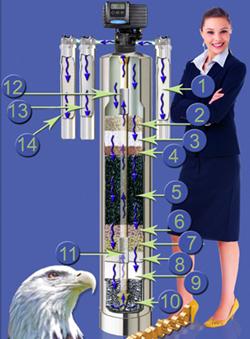

Technologies Employed
CRYSTAL QUEST® Eagle® Full-Size Whole House Water Filter incorporates a host of the most advanced filtration methods in one system. Technologies such as rovides you witStage 1: Sediment Filter: water flows through a 20" sediment filter cartridge that removes sediment, silt, sand and dirt. Also extends the life of the water filter and prevents damage.
Stages 2 and 4: Oxidation Reduction water flows through 2 beds of Redox (Oxidation/reduction process) media made of a special high-purity alloy blend of two dissimilar metals - copper and zinc. Representing a new and unique way of water processing medium which by its natural process of electrochemical oxidation/reduction and adsorption action reduces and/or remove many unwanted contaminants from water. It is a major advancement in water treatment technology that works on electro-chemical and spontaneous-oxidation-reduction (Eagle Redox Alloy®) principles. Chlorine is instantaneously and almost inexhaustibly oxidized. Iron and hydrogen sulfide are oxidized into insoluble matter and attaches to the surface of the media. Heavy metals such as lead, mercury, copper, nickel, chromium, cadmium, aluminum, and other dissolved metals are also removed from the water by this natural process of electrochemical process. They are attracted to the surface of the media, much like a magnet. The media inhibits bacterial growth throughout the entire unit.
Stage 3: Harmful Heavy Metal Removal Water flows through the ion exchange resin, reducing heavy metals such as lead, copper, aluminum, and water hardness.Stage 5: Granulated Activated Carbon
water passes through granulated activated carbon (GAC). GAC is universally recognized and widely used as an effective adsorbent for a wide variety of organic contaminants, such as chlorine (99.9%), chemicals linked to cancer (THM's, benzene), pesticides, herbicides, insecticides, volatile organic compounds (VOC's), PCB's, MTBE's and hundreds of other chemical contaminants that may be present in water, bad taste, and odors from your drinking water.S
tage 6 and 7: Infrared Mineral Balls Water travels through a special blend of natural Infra-Red and mineral balls. Infra-Red rays are the invisible portion of the sunlight spectrum that has been found to promote growth and health to living cells in plants, animals, and humans. By using a far infrared water filtration system, some have estimated an enrichment of treated water that somehow strengthens various organs within our bodies.S
tage 8 and 9: Alkaline Mineral: water travels through special blend of natural calcium carbonate medias which will alkalize/ionize and remineralizes water and raise the pH level of your water. It reduces acidity in the body and will produce natural calcium, magnesium, sodium and potassium ions that can be absorbed 100% in the human body. These Essential Minerals are vital to our organs. These are the symptoms when lacking essential minerals: Fatigue, Insomnia, Loss of Hair, Depression, Diabetes, High Blood Pressure, Asthma, Decayed Teeth, PMS. Migraines, Heart Disease.BENEFITS
Produces large quantities of hydrogen and oxygen
Produces Alkali Calcium Ionized Water
Provides more energy and increases the metabolic process.
Prevents Reproduction of Germs and Virus
Reverses aging, due to reduction of acid wastes
Activates water molecules in our body
Helps the body dissolve wastes and makes it easier to dispose them safely
Stage 10: Gravel Bed:
water travels through bed of gravel. It provides backwashing support & polishes off the water.S
tage 11 and 12: Magnetize: water flows through two powerful magnet (greater than 12,000 gauss) creates magnetic field in filter for magnetic resonance activation of the water. This process lowers surface tension, increases solubility and increases absorptivity. This process also alter the physical characteristics of water-borne minerals so they don’t cling to pipes or equipment surfaces. It also controls lime/scale build-up plumbing corrosion protection.S
tage 13: Carbon Block Filter: water flows through a 20" solid carbon cartridge for removing volatile organic carbon compounds (VOC's, insecticides, pesticides and industrial solvents).*S
tage 14: Ultrafiltration water passes through a 0.2 micron Ultrafiltration (UF) membrane. Ultrafiltration (UF) is an important purification technology used for the production of high-purity water. UF is effective for the removal of colloids, proteins, bacteria, viruses, parasites, protozoa and pyrogens (e.g., gram-negative bacterial endotoxins), other organic molecules larger than .01 micron, and most other water contaminants known today.
The system connects to the main line of your homeEasy to replace resin media approximately every 5 to 7 years for 750,000 gallons and 7 to 10 years for 1,000,000 gallons**
Click here for Guide to replacing media
Easy Filter Changes Requires only periodic backwash to keep unit in top condition
Available in 3/4" and 1" NPT input/output
fully shipped with filtration media already in the tankTank Type:
There is no qualitative benefit to the filtered water whether you use a stainless steel tanks or fiber glass tanks.
Manual Backwashing & Fiber Glass Tank In Stainless Steel Jacket Eagle 2000-FG | ||||||
Model
|
Capacity | Resin/Cu. ft | Flow Rate | Tank Size |
Price |
Add to Cart
|
CQE-WH-02104
|
750,000 gallons |
1.5 | 9 - 11 GPM *** | 10" x 54" | ||
CQE-WH-02105
|
1,000,000 gallons |
2.0 | 10 - 13 GPM*** | 12" x 52" | ||
Free Shipping to the 48 lower States for orders over $100.00 |

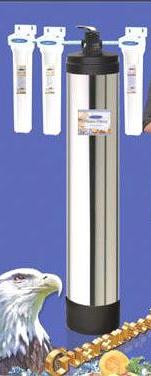

Manual Backwashing In Stainless
Steel Tank Eagle 2000-SS |
||||||
|
||||||
Model
|
Capacity |
Resin/Cu. ft |
Flow Rate |
Tank Size |
Price |
Add to Cart
|
CQE-WH-02106
|
750,000 gallons |
1.5 | 9 - 11 GPM *** | 10" x 54" | ||
CQE-WH-02107
|
1,000,000 gallons |
2.0 | 10 - 13 GPM*** | 12" x 52" | ||
Free Shipping to the 48 lower States for orders over $100.00 |
Manual Backwashing In Stainless
Steel Tank Eagle 2000A-FG |
||||||
|
||||||
Model
|
Capacity |
Resin/Cu. ft |
Flow Rate |
Tank Size |
Price |
Add to Cart
|
CQE-WH-02111
|
750,000 gallons |
1.5 | 9 - 11 GPM *** | 10" x 54" | ||
CQE-WH-02108
|
1,000,000 gallons |
2.0 | 10 - 13 GPM*** | 12" x 52" | ||
Free Shipping to the 48 lower States for orders over $100.00 |
Manual Backwashing In Stainless
Steel Tank Eagle 2000A-SS |
||||||
|
||||||
Model
|
Capacity |
Resin/Cu. ft |
Flow Rate |
Tank Size |
Price |
Add to Cart
|
CQE-WH-02109
|
750,000 gallons |
1.5 | 9 - 11 GPM *** | 10" x 54" | ||
CQE-WH-02110
|
1,000,000 gallons |
2.0 | 10 - 13 GPM*** | 12" x 52" | ||
Free Shipping to the 48 lower States for orders over $100.00 |
Replacement Pre & Post Filters For Eagle 1000 |
|
|
|
Carbon Block Filter |
UF Membrane Cartridge Filter |
Reusable Sediment Filter |
Model/Capacity
|
Price |
Add to Cart
|
5 Micron Carbon Block 2-7/8" x 20"
Cartridge Filter
|
||
Crystal
Quest 2-7/8" x 20" UF Membrane Cartridge
Filter
|
||
5-Micron Sediment Reusable Pleated 2-7/8" x 20" Cartridge Filter
|
||
Free Shipping to the 48 lower States for orders over $100.00 |
* If present in your water.
** Varies with condition and amount of water consumption.
*** These rates and the drop in the flow will vary depending on the GPM and psi of the feed water.
Guide for Replacing Media |
Turn off the water to the unit.
Disconnect the unit from your plumbing.
Carefully unscrew the valve off the top of the tank.
Inside of your tank is plastic tubing known as the “riser tube”. The riser tube sucks up the water from the bottom of the tank during normal operation, and forces water to the bottom of the tank during the backwash operation. After removing the control valve from the tank, remove the riser tube from inside the mineral tank.
Lay the tank on its side, or lay over trash can, to remove media.
Rinse the inside of the tank clean with a garden hose.
Discard old resin.
Save old gravel.
Make sure your media tank is standing straight up.
Put a piece of tape over the top of the riser tube to prevent media from entering the tube while you are loading the media.
Put the media funnel included with your system in the top of the media tank with the riser tube still inside and centered.
The gravel goes into the tank first. When pouring in the gravel, make sure the riser tube is firmly on the bottom of the tank. Once you add your media, if the riser tube is pulled out of the gravel, it is impossible to put it back in without removing the other media from the tank.
Pour the resin/media into the funnel, slowly letting it fall down inside the media tank around the riser tube. If you have a twin alternating system, divide the resin/media equally between the two tanks.
When you have poured all of the resin/media into the media tank, it should be approximately 3/4 full.
Remove the funnel and then the tape from the top of the riser tube.
Brush any loose resin/media off the top opening of the tank. Clean the top edge with a cloth so the O-ring can seal securely to the valve base.
Look at the bottom of your control valve and you will see an upper basket Inside of the basket, the valve has O-rings that will seal on the riser tube. Tilt the valve over on top of the media tank making sure the top of the riser tube inserts inside the opening of the upper basket. Guide the riser into the O-ring seal and tighten gently.
Screw the valve back onto the top of the tank.
Reconnect your plumbing to your unit. Turn the water to the unit on and check for leaks.
Leave all faucets turned off inside the house, and open a single faucet (such as an outside faucet) letting the water run for 3-5 minutes. This rinses the new resin/media off inside the tank, and any particles or color will rinse out through the one open faucet, and not throughout your home plumbing system.
